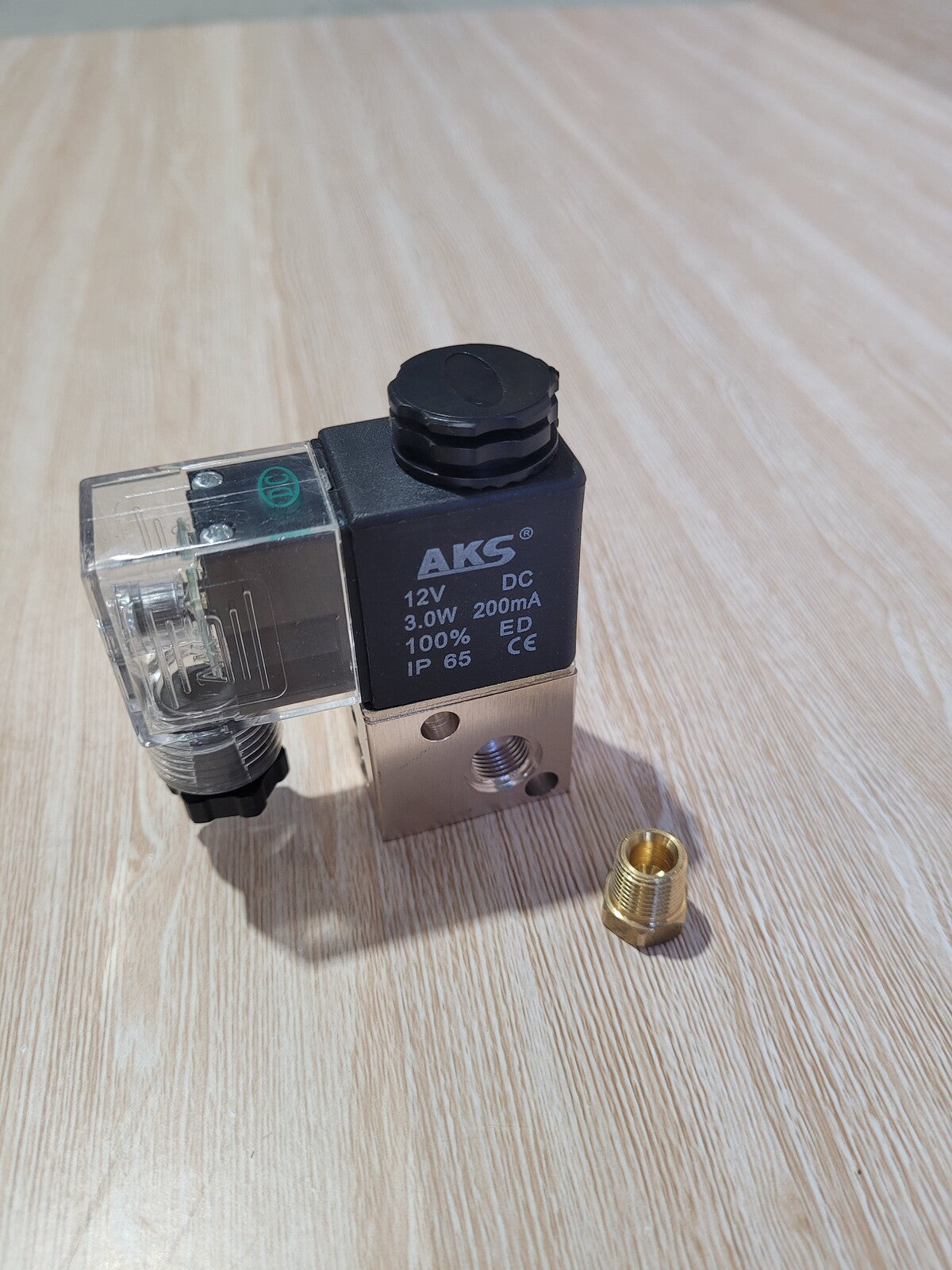

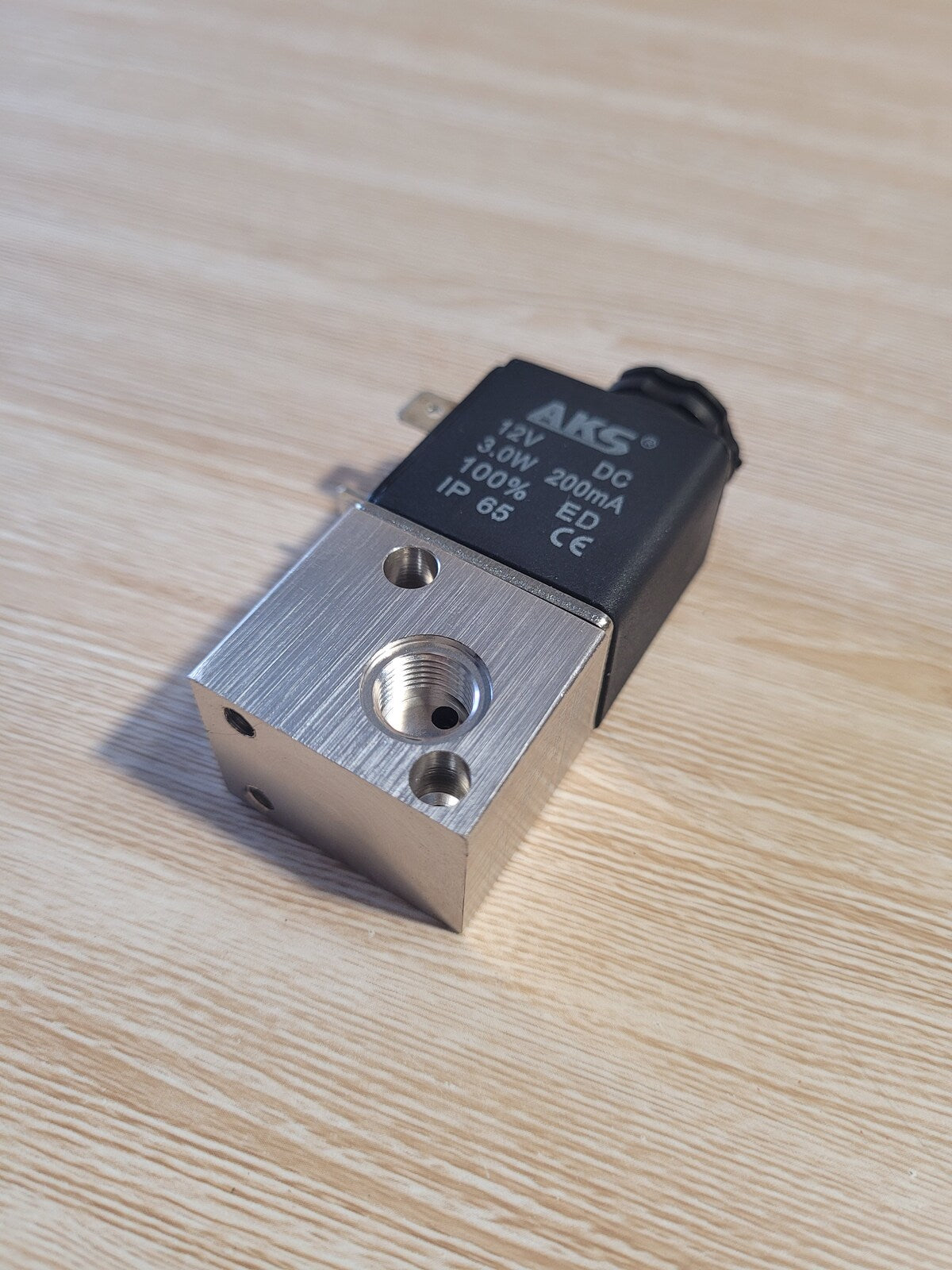

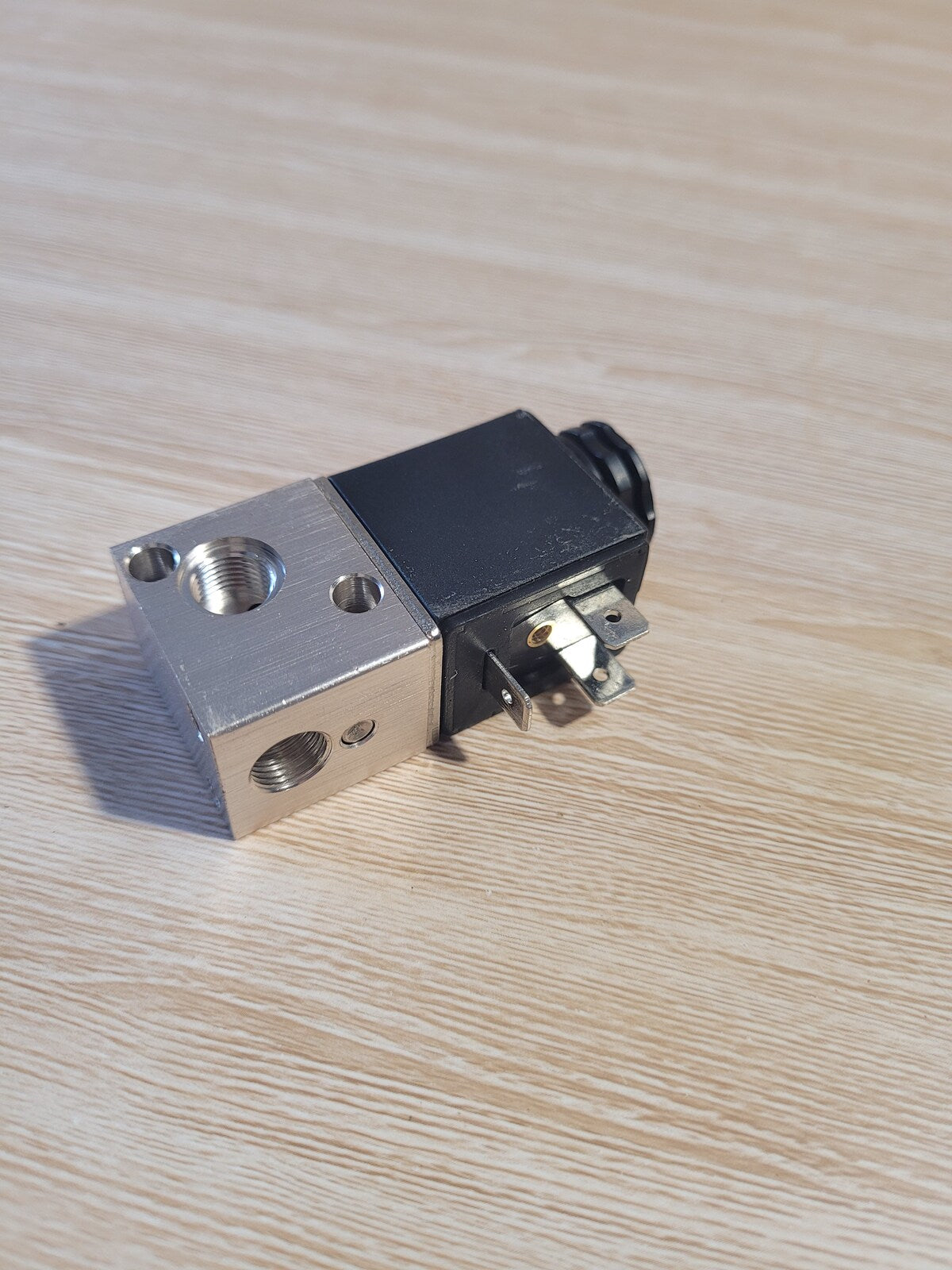

3 Port Air Freespool Solenoid

The air solenoids are a 3 port solenoid meaning you can have air come from a left or right orientation on your compressor or have multiple solenoids stacked off a single compressor port.

Utilising a simple 2 prong 12 volt wire in, these solenoids only require a switched positive and a negative to be activated. (rocker switches are available separately)

With a 1/8BSP port size these solenoids are perfect for use with air freespool drums, Kamo Oko Vidi Industries twin speed top hats and air activated diff locks.

Rated to 115PSI.

With 3 mounting capabilities these solenoids can be:

• Stacked = using a 1/8BSP joiner (available separately) the solenoids can be screwed together using the spare port.
• Mounted Sideways = Using the conveniently placed 5mm holes on the side of the solenoid, you can flush or side mount these solenoids using M5 socket head cap screws
• Mounted upright = Using the M4 threaded holes on the bottom of the solenoid, you can use our solenoid bracket to mount the solenoid upright anywhere in your vehicle -  https://www.thehighmountguy.com.au/products/3-port-air-solenoid-mounting-bracket?_pos=2&_psq=3+solenoid&_ss=e&_v=1.0
