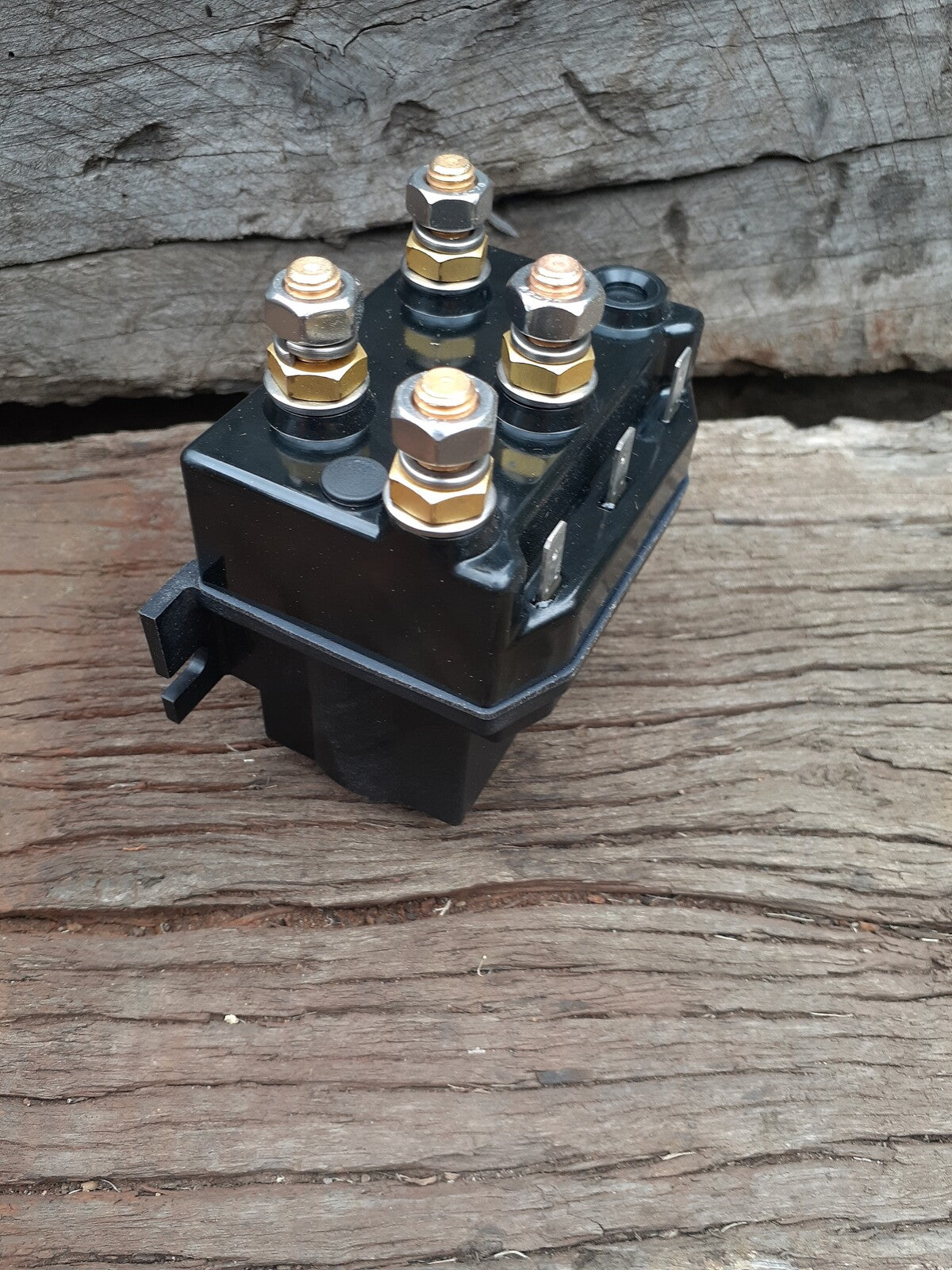

Albright DC88-1012PL 12v solenoid

Genuine Albright Winch Solenoid 12vDC88P-H0 High Output

Albright DC contactors and winch solenoids With over 70 years experience in manufacturing the Albright DC88P series of winch solenoids are the best on the market.
Their superior duty cycle and water proofing makes them ideal for use in offroad conditions.
Capable of withstanding high current loads these solenoids are suitable replacement solenoid for any Hi Output winch motor

These units are water and shock resistant. Can be used with 12v or 24v applications but require 12v Current for switching only

In a small, water resistant package, the Albright solenoid can be located near the winch, or in the engine bay for ultimate reliability. One Albright contactor is needed to replace the solenoid pack on standard winches.
This HO series features larger contacts than the standard HD item, improving reliability and reducing the risk of premature contactor and motor failure.

The features of the Albright High Output Solenoid are:

• Lower casing made from less rigid material making the unit more resistant to knocks and bangs
• IP66 Rating, Protected for water and dust ingress.
• Built in mounting brackets for secure fitment
• Heavier duty internal contacts
• Spade Terminals for switching circuitry spaced further apart for ease of fitting/maintenance
• Ideal for use in conjunction with our extended motor bolts and solenoid wiring harnesses
• Compatible with wireless remotes
• Ideal for series wound and permanent magnet DC motors
• Bi-directional for winches with release and retrieve motors (F1 & F2)
• Max Current 800 Amps
• Voltage 12 Volt & 24 Volt DC versions
• Winch Loads 4,500lb to 18,000lb
• Warranty 12 Months

PLEASE NOTE: THIS SOLENOID WILL WORK WITH ANY SERIES WOUND MOTOR ( Three terminals on top and earth post underneath) - IT IS NOT SUITABLE FOR A PERMANANT MAGNET MOTOR (two terminals)
Solenoid Specification Value

Diamensions
Dimensions Overall Height = 97mm
Main Body Height = 79mm
Overall Width = 100mm
Overall Depth = 61mm
Terminal Height = 18mm
Terminal Size = M8

Check out the WinchGear extended motor bolts if you'd like to mount the solenoid to the back of your winch motor
