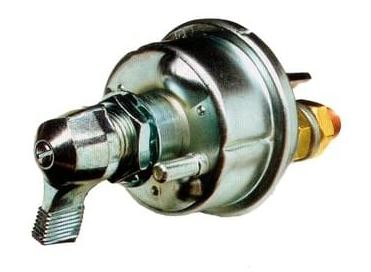

Battery Master Switch 6-36V 300A Cont. NO+Field Contacts Single Pole Pin locator

Terminals - Width:                  1/2-20 (x 2)

Mounting Stem:                      3/4-24 Thread; L 13mm

Ingress Protection:                 IP64

Intermittent Rating 5 Mins:    1000A/20A

Field Terminals Amp.:                         20A Cont.

Terminal Stud Material:                      Copper

Stud Size (mm):                      10-32 (x 2)

Colour:                                    Chrome Lever

Actuator:                                 Die Cast Lever

Voltage                                   6 - 36V

Common Application:           Heavy Duty, Mining

Cable size required:               4/0

Brand:                                     COLE HERSEE

Type:                                       DPST Field/Battery

Alternator Field Disconnect: Yes

Anti Rotation Pin:                  Yes

Amperage:                             300A Cont.; 2000A Int.

Features:                                Weather Resistant O-Ring Sealed; Pin Locator For A

Contacts:                               Silver

Dimensions:                          H 110 x 67
