Gigglepin Air Freespool Drum Standard Length (8274 length)

With over 10 years of design and testing these freespool drums share the design features/components of Gigglepin GP100 series complete winches & lower housings.

This pneumatic freespooling winch drum is a direct replacement for the drum on a standard Warm 8274 (of any age).

Redesigned to be stronger, lighter and easier to use, it now features 8mm thick drum end plates to reduce flex.

The drum end plates are spaced away from lower housing, so if either do flex, the drum continues to operate.

Reduced diameter to increase rope capacity.

Improved EN36 case hardened dog engagement technology, same as GP100 series for total reliability.

Stainless steel bearing supports.

Large roller bearings and housing seal drum seal spacer built onto drum.

Gigglepin rope retention system

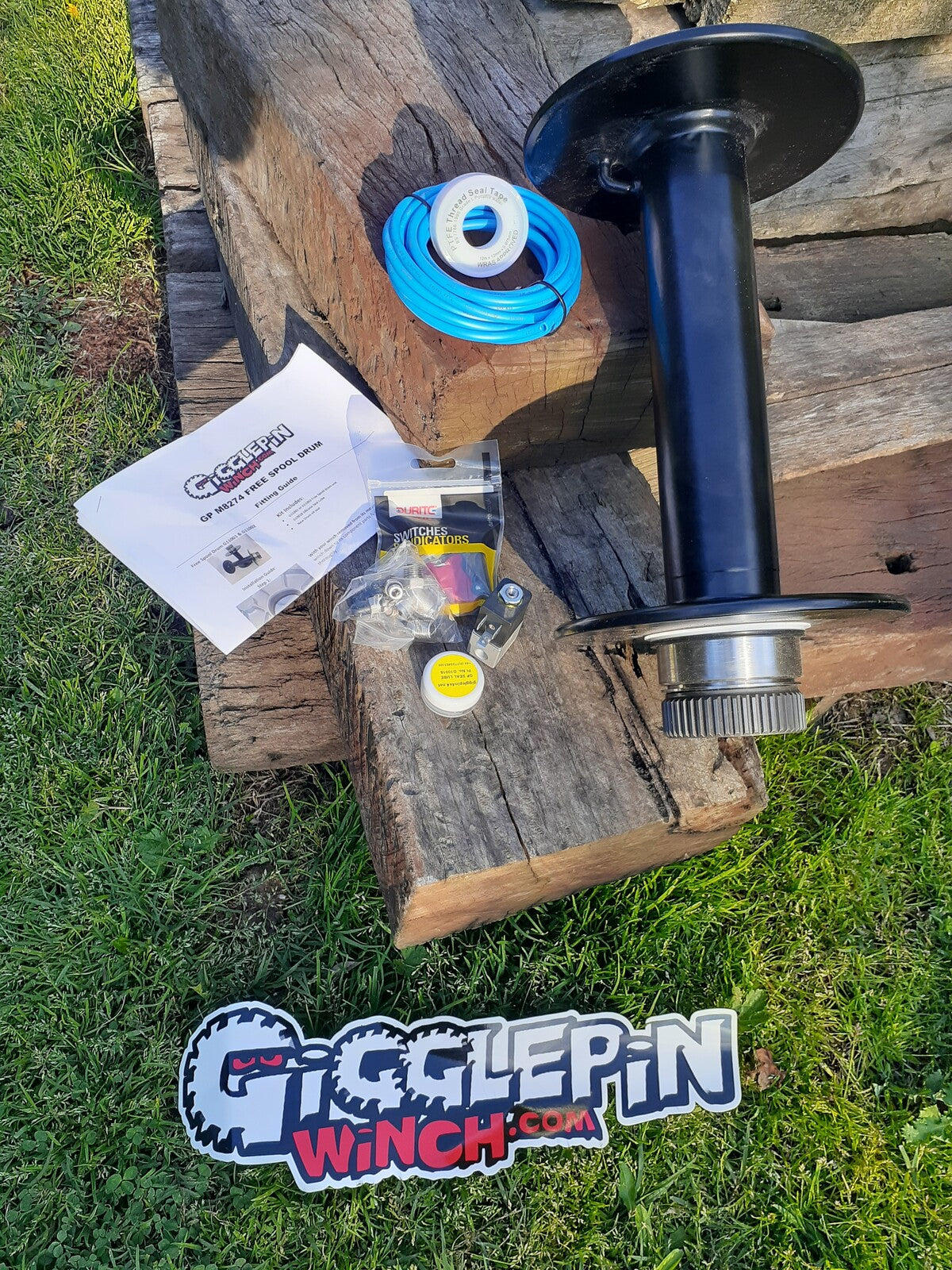

Supplied with:

• Drum seal
• GP Seal Lube (G10018)
• Air solenoid activation kit including; solenoid, switch and airline.
• Fitting guide & wiring diagram
