RED WINCHES COBRA 2 (12V) STD DRUM 2,000KG (4,400 LBS) OVERDRIVE

Name: RED WINCHES COBRA 2 (12V) STD DRUM 2,000KG (4,400 LBS) OVERDRIVE
Brand: Red Winches
Price: 5290.0 AUD
Availability: InStock

$5,290.00 AUD

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

RED WINCH COBRA 2 (12V)

RED WINCHES COBRA 2 GENERALLY HAVE A 6-8 WEEK BUILD/SHIP TIME, WE KEEP SOME MODELS IN STOCK PLEASE CONTACT US FOR MORE INFORMATION

Our next-generation low line single motor winch is the ultimate high-performance low line electric winch, capable of being used in the most demanding conditions worldwide. Its engineering is like no other winch on the market.

This page is for our 12v version of the Cobra 2, standard length drum driven by our fast OVERDRIVE gearbox with the fast pulley setup. Giving very high line speeds, but the line pull is reduced. This is ideal if you have a lightweight vehicle/truck/ buggy, please see below under gearbox for the impressive line speed performance of this winch

The winch motor voltage and the winch IN and winch OUT signal voltage from your vehicle have to be all 12v dc.

The Cobra 2 is an excellent choice when it comes to the best electric high mount winch for your on-road, expedition, weekend trip or full spec off-road vehicle.

RED Winches has designed and developed this winch for serious use, competition and military, but it is just as happy on a road-going vehicle as it is on a fully equipped and prepared 4×4 truck.

All products at RED winches have been through an extensive design and testing program. With many of them having military testing behind them also. We do all this before going on sale so you can use all our winches with confidence, knowing they will not let you down.

This Cobra 2 like all our engineered winches has the famous RED Winch air brake system, meaning the winch stops instantly when you take your finger off the winch button.

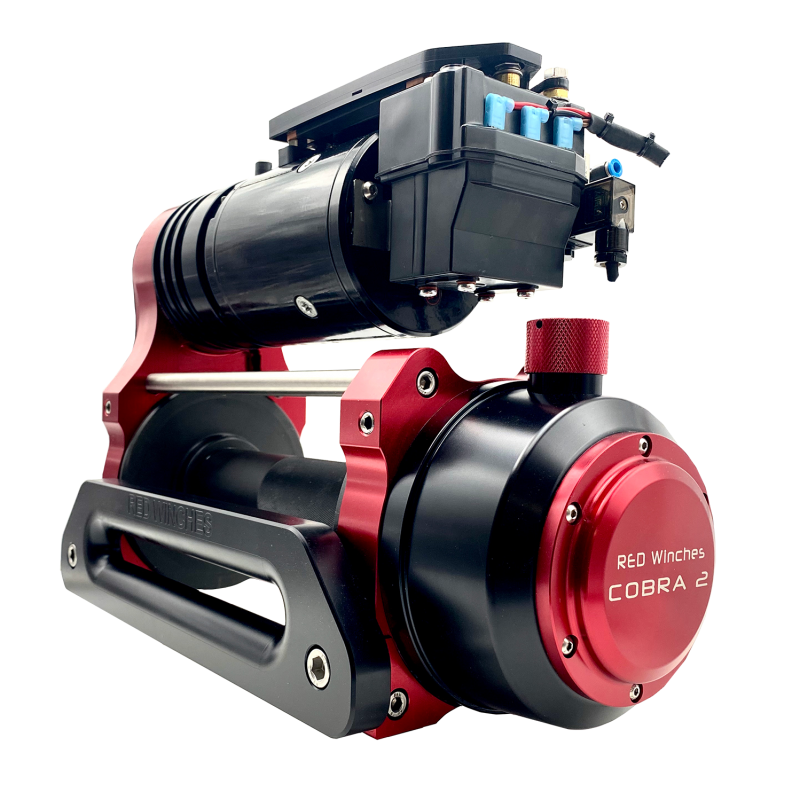

The winch is controlled and given its power from a world-class Albright motor solenoid, that is mounted on the back of the winch OX Motor. The solenoid is connected to the OX Motor by high efficient pure copper bus bars to efficiently transfer the power.

POWER & STRENGTH

This page is for our 12v version of our Cobra 2 where the motor power voltage and the winch in and winch out signal voltage are both 12v dc.

To handle the power this winch can deliver in all its options, the winch body is fully CNC machined from high-grade heat-treated aluminium and from solid aluminium billets. No castings or injection mouldings are used. Protecting your investment in this winch from cracked housings or mountings.
We only use the best machine tools and machining processes on modern machines to ensure tolerances and stress in the parts is kept to a minimum and strength to its maximum.

GEARBOX & SPEEDS

The 12v Cobra 2 winch on this page is fitted with the Overdrive Gearbox which will give you the following performance when winching from 1st layer on the winch drum:

COBRA 2- OVERDRIVE

Rated Pull: 2,000kg (4,400 lbs)

Final gearbox Ratio: 61:1

Average no load line speed over 30m (100ft): 38.5M/Min

DRUM

The drum is steel in construction, precision machined to run true and smoothly within its drum bearings. The drum runs between two drum seals (one each end), making the winch watertight and allowing the end-user to operate the winch underwater. The drum bearings are behind the drum seals and are free-running ball bearings, and filled with waterproof grease as an added second barrier from water ingress.

The drum can accept the following lengths and sizes of rope:

COBRA 2 STANDARD DRUM:

The Std drum can hold 36m of 10mm plasma or synthetic rope.

The Std drum can hold 30m of 11mm plasma or synthetic rope.

The Std drum can hold 25m of 12mm plasma or synthetic rope.

Attaching the rope to the drum is done using a plasma lock. Which comes free with every winch purchased.

Please see link below:

https://www.red-winches.com/products/plasma-lock/184/

RED WINCH AIR BRAKE SYSTEM

Spring pressure applies a steel disc to the brake material when the winch is not in use.
This applies the brake and stops the winch from spooling out, this is a fail-safe system.

If you have a loss of power or air, the winch will stop and hold the weight of your vehicle.

When you winch in or out you engage your motor solenoid, this same signal also energises the air solenoid valve for the brake. This then allows air to go into a specially designed chamber that releases the brake instantly. When you remove your winching finger from the controls the air solenoid dumps the air and the springs apply the brake disc back onto the brake pads.

One nice feature we strongly recommend is when you are lowering out you can switch your power isolator off to the winch (no power to the motors) and just use the winch out button/rocker switch. This still will activate the air solenoid (using signal voltage) and releases the brake and your vehicle and only pulls out rope for the amount of drop your vehicle needs or moves. This means compared to normal winching you do not get overrun or excess rope causing hard snatching and jerking as the vehicle takes up the slack rope that has been spooled out. The air brakes also have a gradual on and off action to them. The brake can be adjusted for the weight of your vehicle or how you like your brake to operate, by adding or removing springs.

We would expect a set of brake pads to last at least 24 months under regular use due to the material they are made from. Brake pad sets and all spare parts can be ordered if needed.
