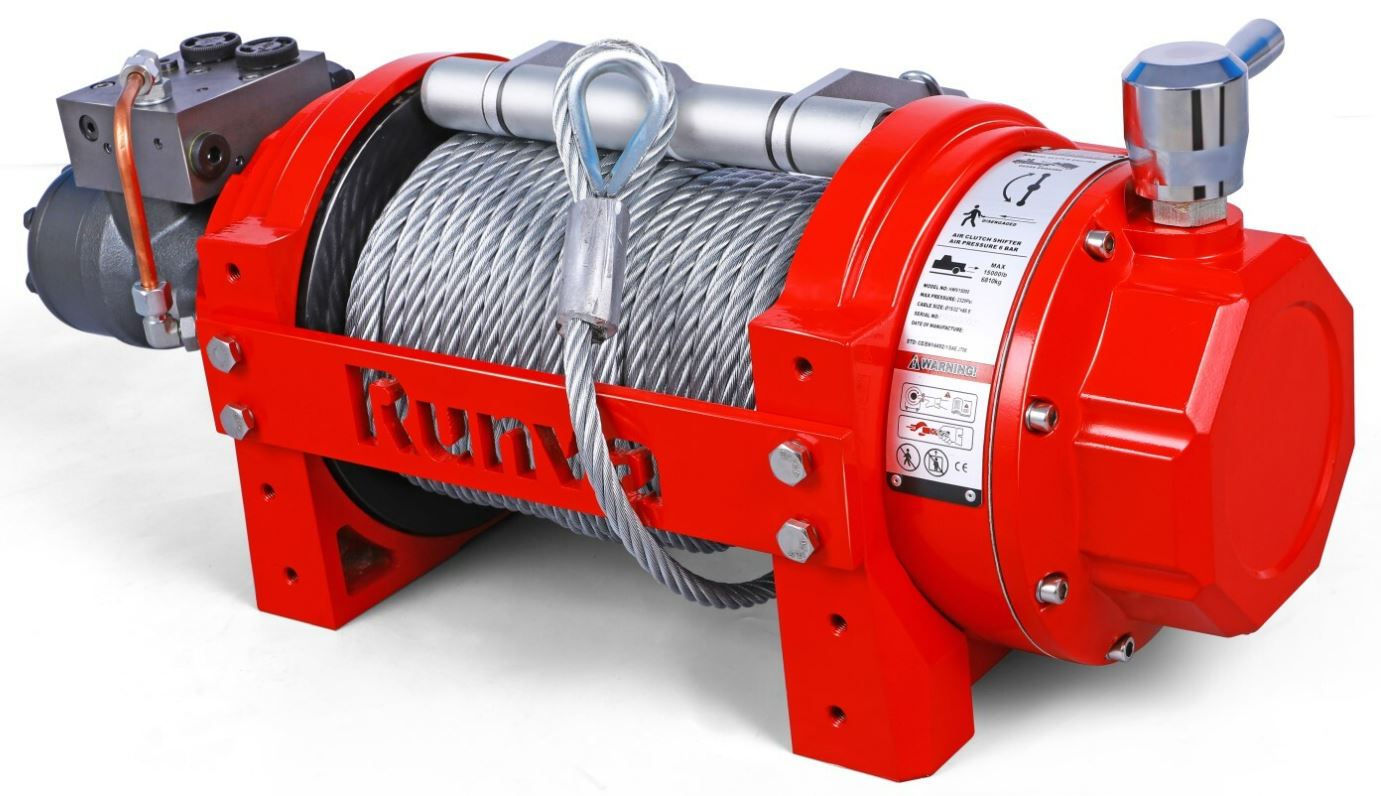

RUNVA HWV15000 HYDRAULIC WINCH WITH STEEL CABLE

RUNVA HWV15000 HYDRAULIC WINCH WITH STEEL CABLE

Regular price $2,450.00 AUD
Regular price Sale price $2,450.00 AUD
Sale Sold out
Shipping calculated at checkout.

The Runva HWV15000 is a powerful commercial grade hydraulic winch that can be used in a variety of industries and applications. This winch offers a massive 15,000lb of line pull. With only three layers of cable across a wide drum, the minimum line pull remains higher than on our smaller Runva HWN15000I. Meeting European EN standards, this is our hardest working 15,000lb hydraulic option. A cable tensioner is fitted to the winch as standard keeping the cable tidy when winching.

The braking is automatic via the wet-type hydraulic disc brake. The gearbox is strong and efficient thanks to the two stage planetary setup. The manual clutch is easy to operate with a 180 degree internal rotation. This can also be changed over to the optional extra Runva Air Clutch system for ease of operation if reaching the clutch lever is difficult or more time consuming.

With full IP67 ingress protection this winch can be used in the most extreme conditions. The HWV15000 is perfect for tow trucks & recovery vehicles, expedition vehicles like Unimog & Iveco Daily, log splitters, portable hydraulic machines, marine applications and MUCH more.

If you need a handheld or wireless remote to operate the winch, a full optional extra accessory kit can be purchased which includes a handheld remote (wireless optional), directional control valve (either 12V or 24V) and valve block.



RATED LINE PULL15,000LB (6,804KG)
MOTOR DISPLACEMENT160ML/R
OIL FLOW REQUIREMENTS25 – 60L/MIN
PRESSURE REQUIREMENTS16MPA
GEAR TRAINFULL STEEL 2 STAGE PLANETARY
GEAR RATIO17.3:1
CLUTCH TYPESTAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITIONTOP OF WINCH
BRAKEAUTOMATIC LOAD HOLDING HYDRAULIC DISC
CABLE TYPESTEEL CABLE
CABLE SIZE12MM X 26.5M
DRUM SIZE127MM X 266MM
MOUNTING BOLT PATTERN303.5MM X 114.3MM; 368.5MM X 171.2MM (8X M12 BOLTS)
OVERALL DIMENSIONS735MM X 300MM X 277MM
REMOTE CONTROLOPTIONAL EXTRA. (DIRECTIONAL CONTROL VALVE ALSO REQUIRED)
FINISHRED POWDER COAT
WARRANTYLIMITED 18 MONTH COMMERCIAL WARRANTY
SKU HWV15000S
SHIPPING WEIGHT 83.60KG
SHIPPING WIDTH 0.440M
SHIPPING HEIGHT 0.460M
SHIPPING LENGTH 0.840M
