WARN ZEON Platinum 12 12000lbs with Steel Rope

WARN ZEON Platinum 12 12000lbs with Steel Rope

Regular price $3,999.95 AUD
Regular price Sale price $3,999.95 AUD
Sale Sold out
Shipping calculated at checkout.

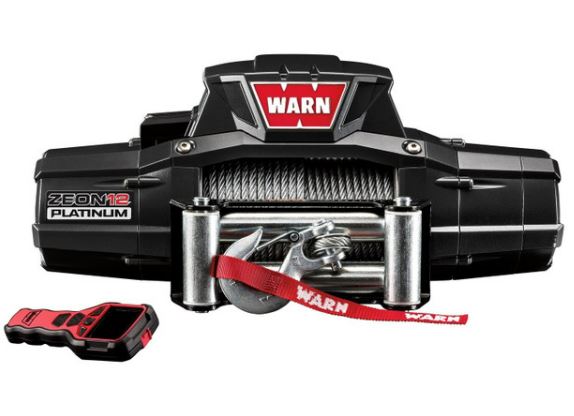

The ZEON 12 Platinum 12-volt electric Winch is vehicle mounted and has a pull capacity of 12,000 pounds. It comes with 80 feet of steel rope. Note: This Winch will require winch mount for proper installation.

With state-of-the-art features, cutting-edge technology, and world-class engineering, the ZEON Platinum is the future of winching. The one-of-a-kind Advanced Wireless Remote controls the clutch, power in/power out, plus it displays motor temperature and vehicle battery info. It also can control two 12-volt accessories, which can be plugged directly into the winch.

Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.

Features:

  • All-new high-speed motor, stronger gears, and heat-treated ring gear deliver 20% faster line speed, best-in-class efficiency, and our highest durability rating.
  • The Advanced Wireless Remote gives you total control in the palm of your hand, allowing you to control the winch and up to two accessories. This sophisticated, advanced remote provides operator feedback on vehicle battery charge and winch motor temperature, controls operation of the winch clutch, and more. Includes USB charging cable and car charger adapter.
  • Remote Controlled Clutch is engaged and disengaged with the Advanced Wireless Remote. The remote controls winch-in, winchout, and freespool operations. No more engaging a manual clutch, with frozen fingers while standing in the mud.
  • Durable aluminum structure with flat black powder-coated finish and stainless steel fasteners delivers durability and maximum corrosion resistance-exceeding 400 hours of salt-spray testing.
  • Large diameter alloy winch drum with steel sleeve is strong, light weight, reduces rope wear, and has an integrated rope anchor for easy rope installation.
  • Extreme waterproofing meets rigorous IP68 standards - the highest rating in the WARN Truck/SUV winch lineup.
  • Convertible control pack can be attached to the winch or remotely mounted, allowing for various winch mounting options and looks (Relocation kit required and sold separately). The new-style control pack with contactor and advanced controls gives you extreme reliability and weather resistance.
  • Limited Lifetime Warranty for Mechanical Components. Limited Seven (7) year warranty for Electrical Components.

Specifications:

TYPE Electric
MOUNT TYPE Vehicle Mounted
RECOMMENDED USE Vehicle Recovery
VOLTAGE 12 Volt
ELECTRICAL CONTROL TYPE Contactors
MOTOR TYPE Series Wound
THERMAL SHUTOFF No
DRIVE GEAR TYPE Planetary
GEAR REDUCTION RATIO 216:1
FREE SPOOLING Yes
BRAKE TYPE Mechanical Cone
LINE DIAMETER (IN) 3/8 Inch
LINE LENGTH (FT) 80 Feet
LINE MATERIAL Steel
FAIRLEAD TYPE Roller
CONFORMS TO J706 STANDARDS No
REMOTE TYPE Wireless
MOUNTING HOLE QUANTITY 4
OPERATION TYPE Automatic
MOUNTING PATTERN LENGTH (IN) 10 Inch
MOUNTING PATTERN WIDTH (IN) 4-1/2 Inch
INCLUDES MOUNTING HARDWARE Yes
COLOR Black
DRUM MATERIAL Aluminum
MAX AMP DRAW/ LINE PULL 446 Amp Draw/ 12000 Pound
MAX LINE PULL/ LINE SPEED 12000 Pound/ 4.5 Feet Per Minute
