WinchGear Extended Motor Bolts
WinchGear Extended Motor Bolts
Regular price
$30.00 AUD
Regular price
Sale price
$30.00 AUD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Reversible M6 / 1/4" UNC Solenoid mounting bolts!
Suit RROR Bullet 6.8 & Warn 9.5XP winch motors

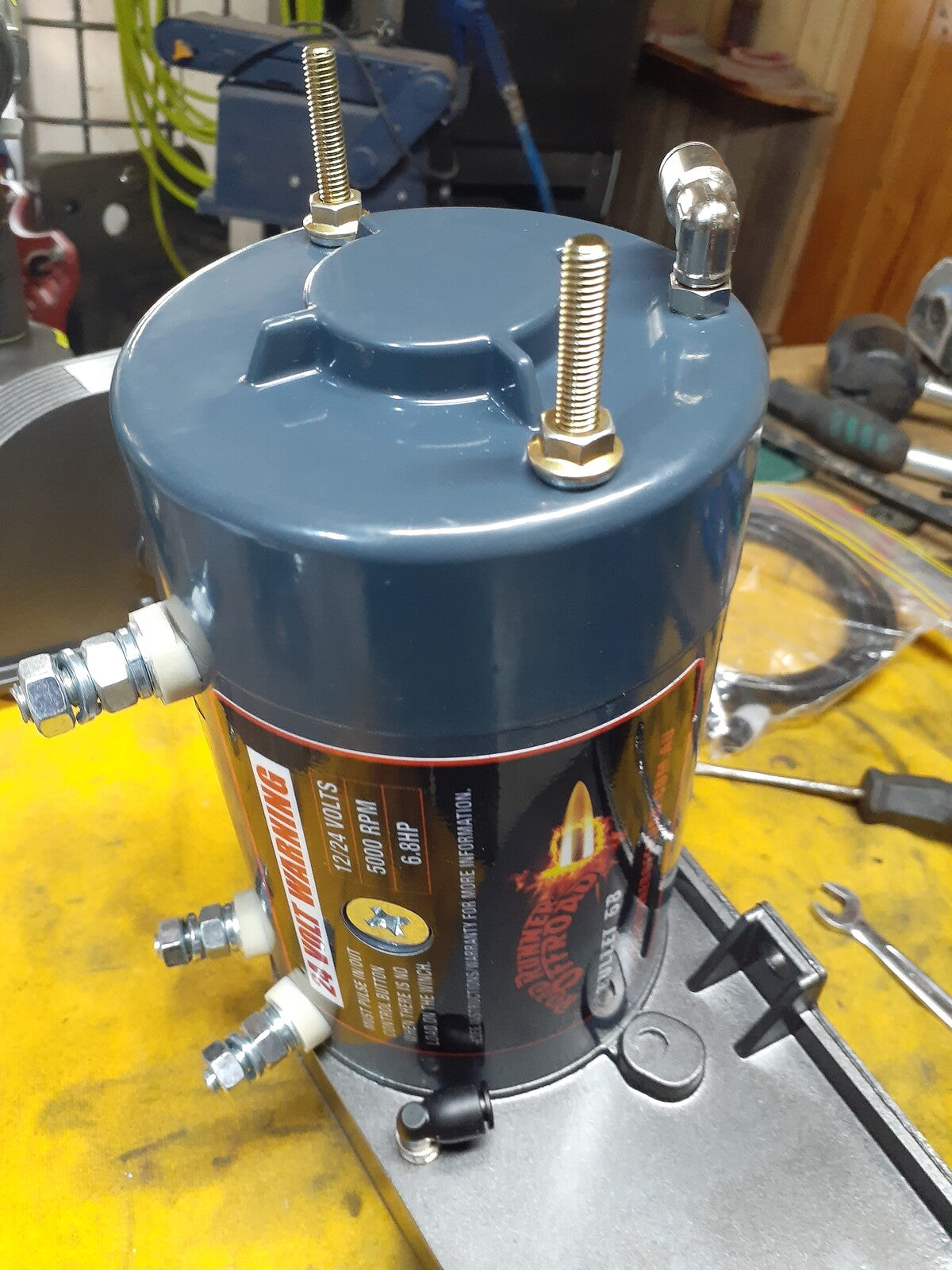

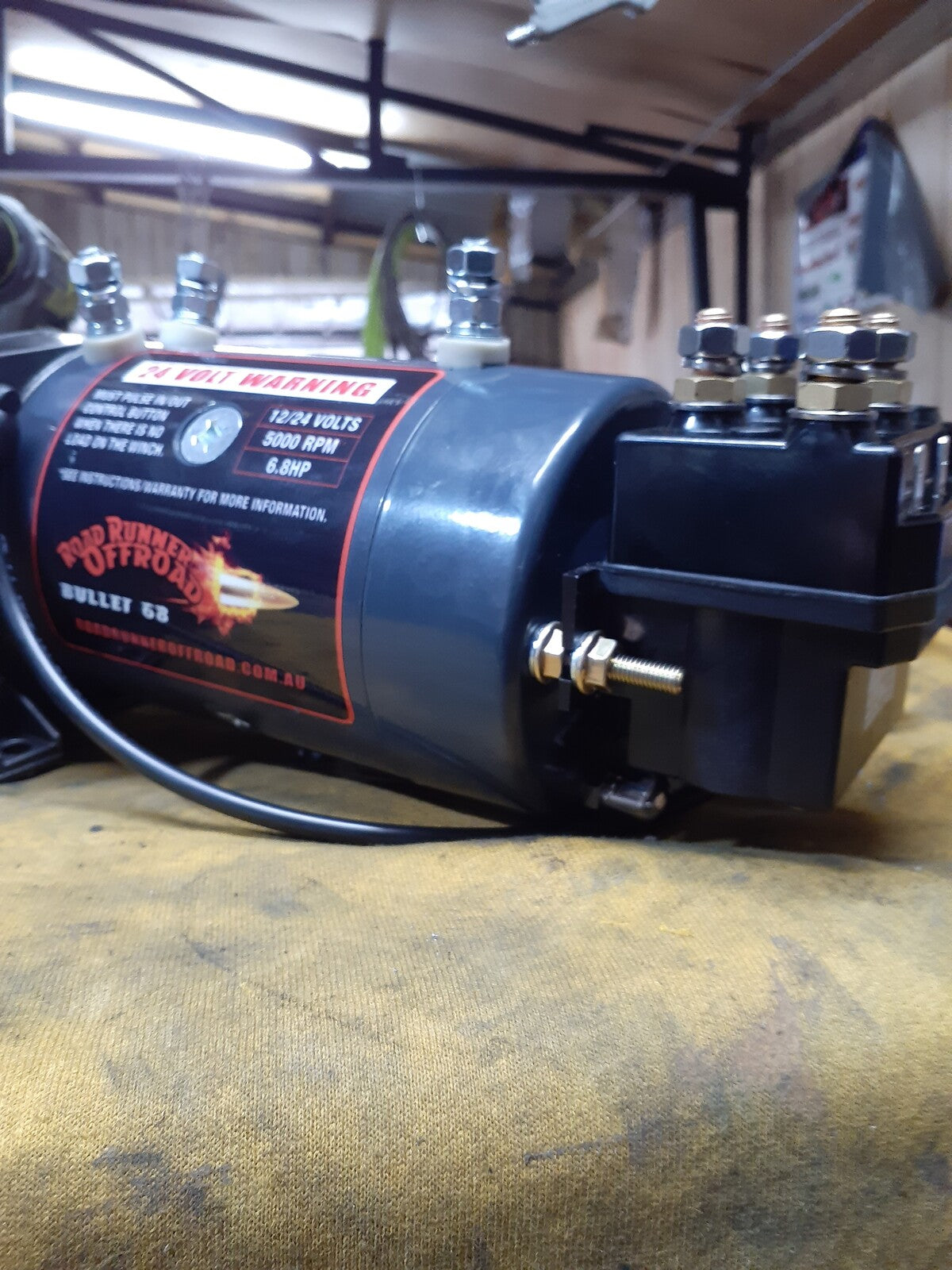

These Reversible Solenoid bolts allow the Bullet motors to be mounted to both M6 (Low mount/Redwinch etc.) and 1/4" UNC (Warn Highmount, GP, etc.) equipped winches. These allow the DC-88 Solenoid to be mounted on the rear of the motor making cabling easy and neat.

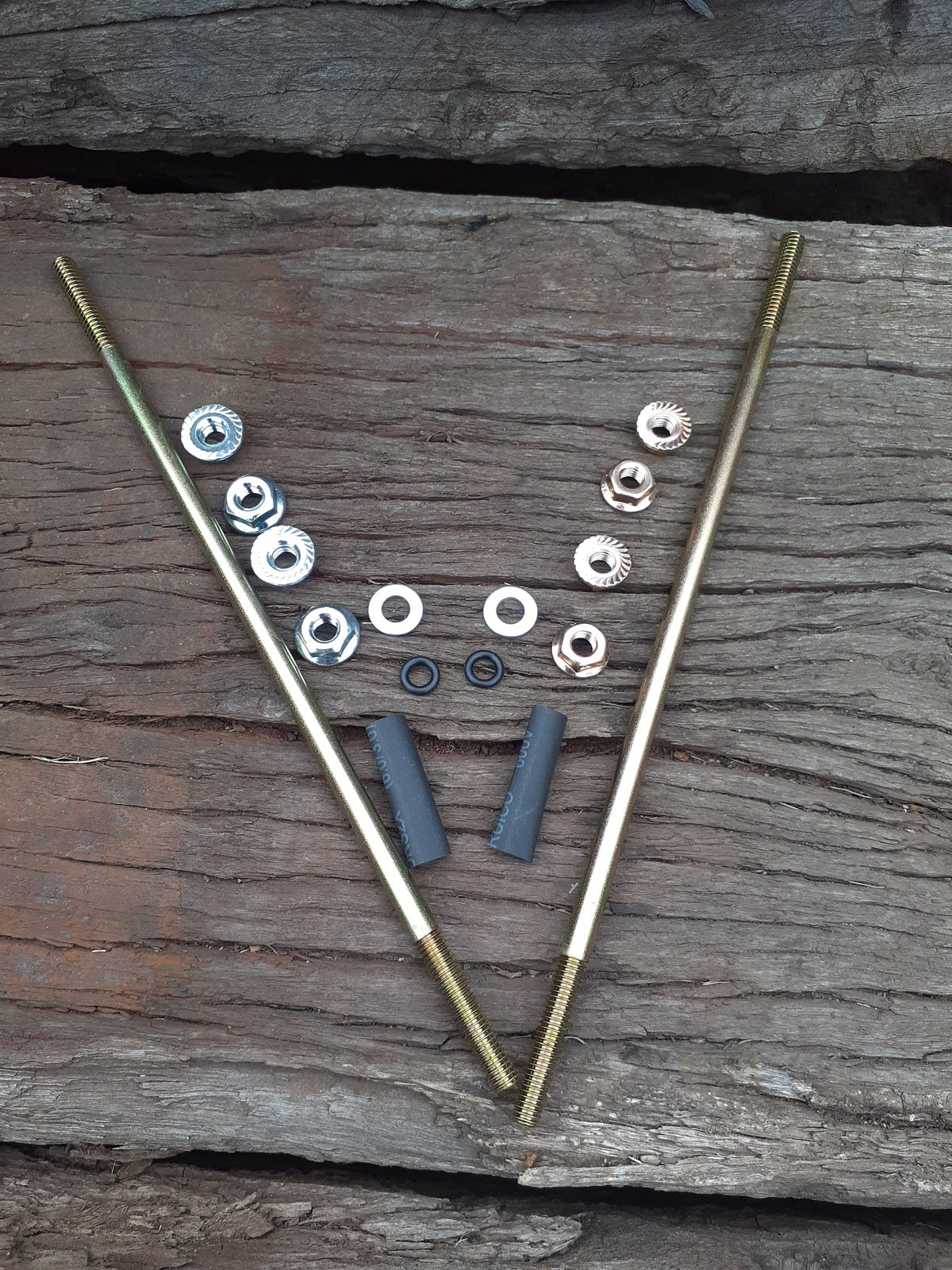

Unique reversible bolts include both metric and imperial hardware to ensure easy fitment to whatever winch you have.
Zinc plated for long lasting corrosion resistance.
IMPERIAL WINCHES (Warn 8274, GP etc)
Use GOLD M6 nuts, apply and heat heat shrink to the M6 end of the solid bar (not over threads) lining the end up with the start of the M6 thread. Fit the O ring, flat washer and flange nut all the way to the bottom of the M6 thread then bolt motor up to winch as normal using the remaining flat washer and M6 flange nut to bolt up solenoid.
METRIC WINCHES (RedWinch, Low mounts etc)
Use SILVER 1/4"UNC nuts, apply and heat heat shrink to the 1/4"UNC end of the solid bar (not over threads) lining the end up with the start of the 1/4"UNC thread. Fit the O ring, flat washer and flange nut all the way to the bottom of the 1/4"UNC thread then bolt motor up to winch as normal using the remaining flat washter and 1/4"UNC flange nut to bolt up solenoid.
